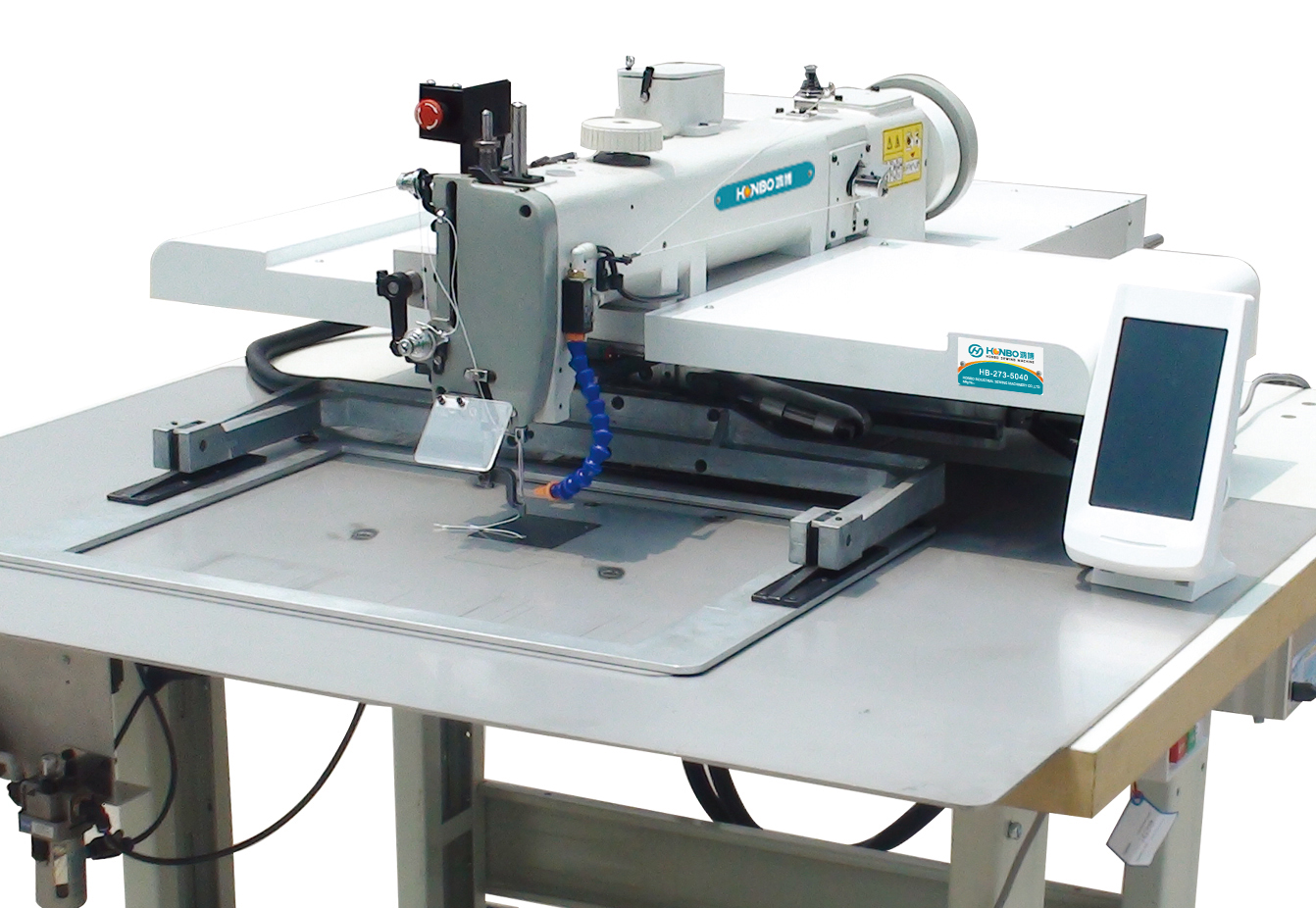

HB-273 -5040 Single/Double Needle Thick Material Sythentic Fiber Webbing Sling Pattern Sewing Machine

产品描述：HB-273 -5040 Single/Double Needle Thick Material Sythentic Fiber Webbing Sling Pattern Sewing Machine

Model	HB-273-5040	optional scope of sewing	X-axis 500mm, y axis 400mm	max sewing speed	700 r.p.m
set speed	200-700r.p.m	stitch length	0.1-12mm	stitch	single needle double thread lockstitch
sewing data	56.3mm	needle bar stroke	94mm	needle type	DYX3 27#
presser foot lifting height	25MM	shuttle hook	HAD -204	trimming system	AC 210/230V, output voltage:AC2V
sewing thread	600D-1500D	lubrication oil	automatic lubrication	x-y driving system	timing belt drive system
controller type	sc44x	power	200v-240v	foot lifting height	25mm
